EmbroideryStudio le permite crear patrones personalizados de lentejuelas gemelas y, como opción, guardarlos a una biblioteca de patrones para urar posteriormente. Depending on machine capabilities, patterns may involve twin- or multi-sequin drops, with or without sequin stacking.
With sequin patterns, the software actually allows you to apply a different fixing type to each sequin. Normally however, you would use the same fixing for all sequins in the pattern. Typically you would consider the cost of embroidery production against sequin weight in order to find a balance. The fewer stitches used, the lower the production cost. At the same time, you want sequins to stay in place during use or washing.
For stacked sequins, pattern setup depends on machine capabilities. With Dahao format, the sequin stack is dropped and secured with a single fixing stitch. For non-Dahao machine formats, the first sequin is dropped, secured, and another dropped on top and stitched again.

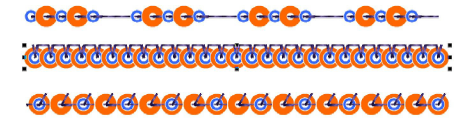

Create a sequin-run object with Sequin Run Auto or select an existing object. This allows you to preview your pattern as you go.

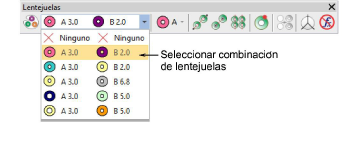

Select the sequin combination you want to use.

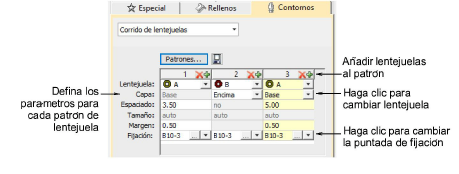

Abra Propiedades de objeto. The Pattern table displays sequins currently in use.
Add or remove sequins via the + and X buttons in the column header.
Seleccione una lentejuela en la lista desplegable. The selected sample updates immediately.

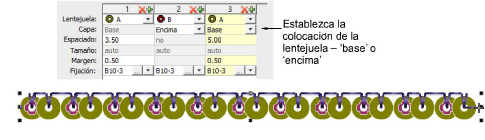

If your machine format supports it – e.g. Tajima TBF, Barudan FDR II or 3, SWF Twin Sequin, etc – you can set up stack sequins using the Layer field. Especifique si la lentejuela debe apilarse (‘encima’) o formar un nuevo elemento (‘base’).

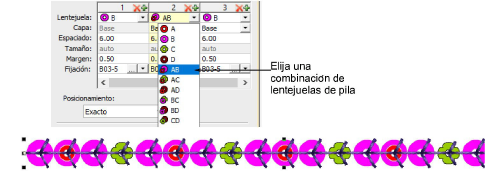

With Dahao format, you can choose sequin stacks from the combinations in the droplist. In this case, two or even three sequins can be dropped simultaneously and locked with a single fixing stitch.
Idea: The digitizer needs to know the machine capabilities by heart. If an unsupported combination is selected – e.g. four sequin stack feeding – the drop code is ignored on the machine.

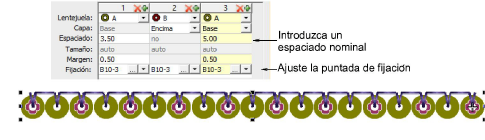

En el campo Espaciado, introduzca un espaciado nominal para cada lentejuela. El espaciado se mide desde el centro de una pila de lentejuelas a la próxima.
En el campo Fijación, seleccione el tipo de fijación que desea. Generally you’ll use the same fixing for all sequins in the pattern.

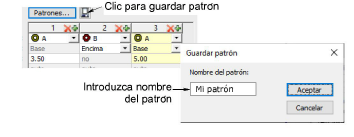

When satisfied with the sequin-run pattern, click Save to record the pattern for future use.
Introduzca un nombre para el patrón y haga clic en Aceptar. It is now available in the Sequin Pattern dialog.
|
